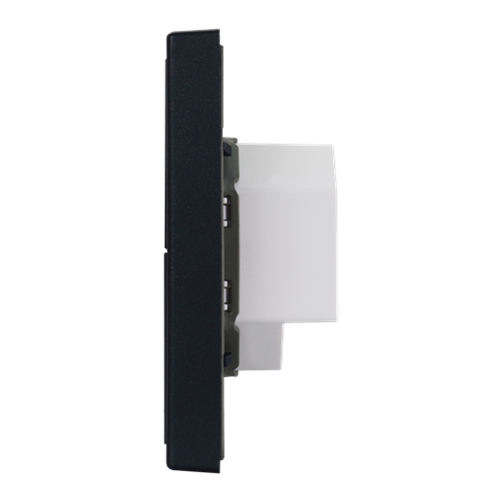

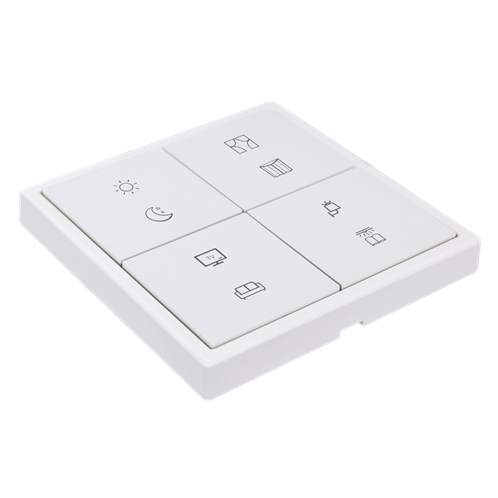

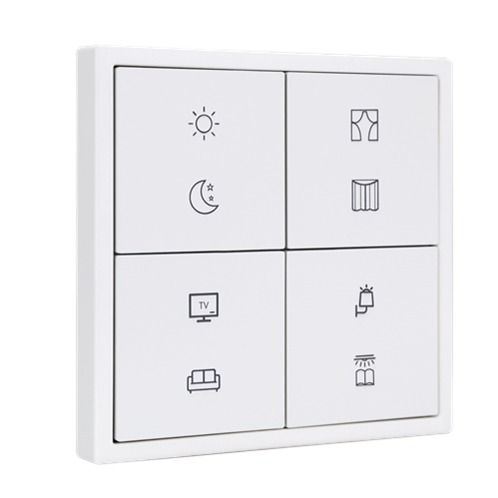

Tile Series 4 Buttons Panel B

Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. The B version enables a single button to split to two buttons in HDL Studio Software, thereby allowing the 1/2/4-button panels to manage 2/4/8 controls, respectively. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.

Categories: ,

Description

Features

  • Built-in temperature sensor
  • Built-in proximity sensor (maximum sensing distance: 20~30cm) The 1 Button Panel A/B in metal version (M/PT1RA.1, M/PT1RB.1) do not support proximity sensing function.
  • Icons and text of each button support laser labelling.
  • Adjustable backlight brightness level via HDL Buspro Setup Tool or manual setting on the panel.
  • Button modes: Single on/off, Single on, Single off, Combination on, Combination off, Combination on/off, Double click/single on/off, Double click/combination on/off, Momentary, Short/long press, Short press/long momentary.
  • Control types: Scene, Sequence, Timer Switch, Universal Switch, Single Channel Lighting Control, Broadcast Scene, Broadcast Channel, Curtain Switch, GPRS Control, Panel Control, Security Module, Music Control, General Control, etc.
  • Button lock function.
  • Online update via HDL Buspro Setup Tool.

Parameters

  • Basic ParametersWorking voltage: 12~30V DC
  • Working current:HDL-MP1B/TILE.48: 9.5mA/24V DCHDL-MP2S/TILE.48: 13.4mA/24V DC

    HDL-MP2B/TILE.48: 13.4mA/24V DC

    HDL-MP4S/TILE.48: 13.5mA/24V DC

    HDL-MP4B/TILE.48: 13.5mA/24V DC

    HDL-MP4B-A/TILE.48: 13.5mA/24V DC

    Communication: HDL Buspro

    Cable diameter of Buspro terminal: 0.6-0.8mm

  • External EnvironmentWorking temperature: -5℃~45℃Working relative humidity: ≤90%

    Storage temperature: -20℃~60℃
    Storage relative humidity: ≤93%

  • SpecificationsDimensions :Plastic version: 86×86×11(mm)； Metal version: 90×90×11(mm)Net weight: Plastic version: 64g； Metal version: 110g

    Housing material: Plastic version: Flame retardant PC；Metal version: Aluminum alloy

    Installation: Wall box

    Protection rating (Compliant with EN 60529): IP20
