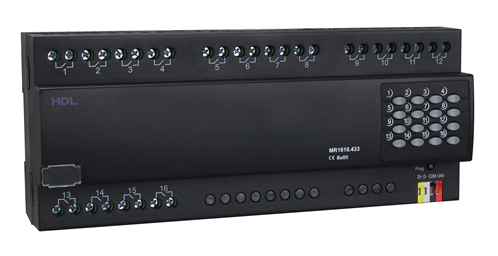

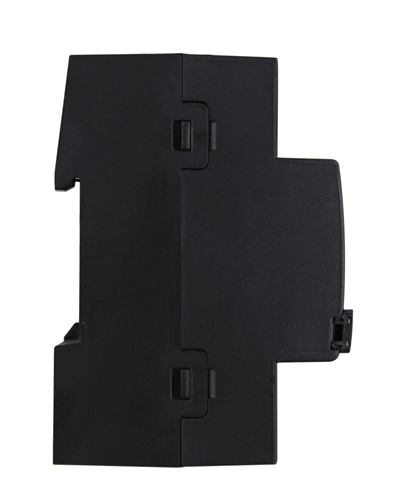

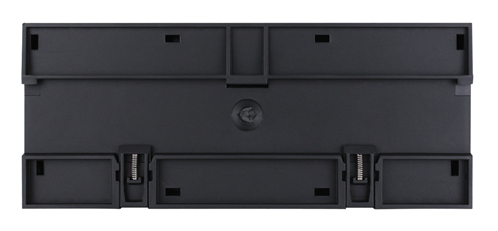

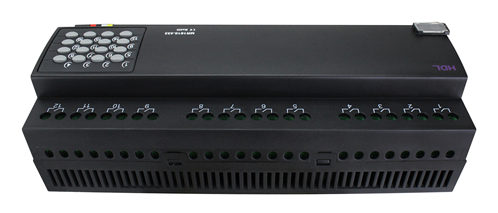

16CH 10A High Power Switch Actuator

Description

Features

•  16-channel relay output unit
• Scene control and sequence control
• Up to 16 separate zones.
• 32 scenes for each zone, scene running time up to 60 minutes
• 2 sequences for each zone, up to 16 steps for each sequence
• Light protection delay for each channel (0-60 minutes)
• Mass turn-on delay for each channel(0-25 seconds)
• Manual switch for each channel
• Selected scene or scene before power off automatically activated when device restarts
• HDL Buspro communication
• Supports online upgrade

Parameters

• Basic Parameters
  • Working voltage：15~30V DC Class 2
  • Working current：40mA/24V DC
  • Input voltage：120V/240V AC (50/60Hz)
  • Output channel：16CH/10A
  • Relay：16A Magnetic latching relay
  • Maximum current of each channel：10A
  • Electronic life time of relay：>60000 (Resistance load)
  • Protection：Connect a breaker in each channel
• External Environment
  • Working temperature：-5℃~45℃
  • Working relative humidity：≤90%
  • Storage temperature：-20℃~60℃
  • Storage relative humidity：≤93%
• Specifications
  • Dimensions ：216mm×90mm×64mm
  • Net weight ：655g
  • Housing material ：Nylon, PC
  • Installation：35mm DIN rail installation
  • Protection rating (Compliant with EN 60529) ：IP20
