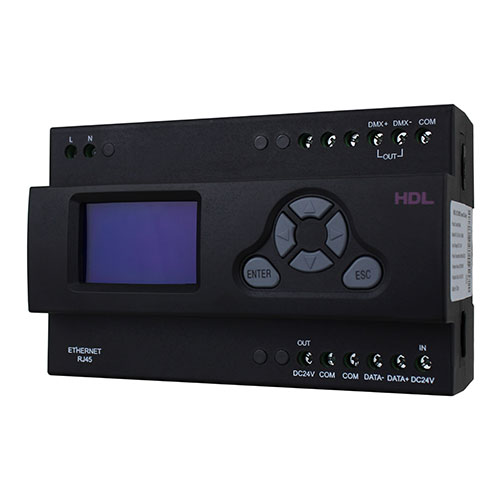

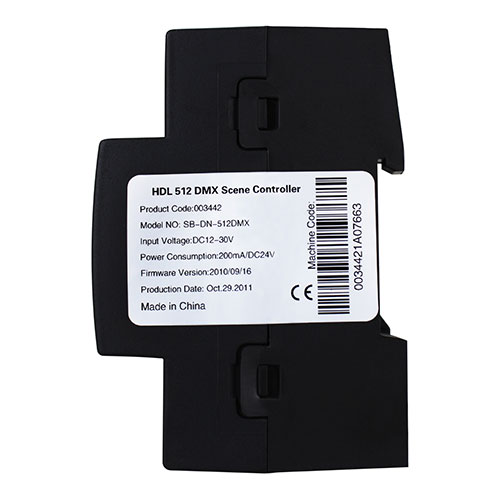

512CH DMX Scene Controller

Description

Features

• 512 DMX channels control, each of which has a gradient and a mutation property.
• Up to 16 areas supported. Each area can be set 0-1024 scenes, with up to 60 minutes running time for each scene.
• Up to 99 sequences can be set. Each sequence has 255 steps with 0.1s to 60min interval time, and 4 running modes are available for each sequence: forward, backward, forward & backward, random
• DMX512 (1990 version)
• Supports Art net / HDL Net DMX protocol
• Low threshold, high threshold, maximum threshold are all available for each channel for different devices
• Each channel has light protection delay time (0-25 seconds)
• Each channel has protection delay time for power on after power off (0-60 minutes)
• Exchange intelligent data, reduce data throughput
• Soft reset supported
• Gateway: data exchange between HDL Buspro and Ethernet

Parameters

• Basic Parameters
  • Working voltage 12~30V DC
  • Working current 200mA/24V DC
  • Input voltage AC100-240V(50/60Hz)
  • Communication HDL Buspro
  • Signal type DMX512 (Version 1990)
  • RJ45 RJ45-TCP/IP network interface

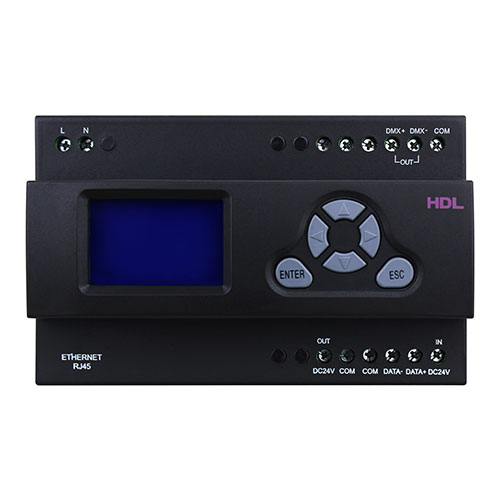

  • HMI 128×64 raster graphic LCD, 6 soft-touch buttons
  • Control channel 512
  • Ethernet network interface 10Mbps/RJ45
• External Environment
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%
• Specifications
  • Dimensions 144mm×90mm×64mm
  • Net weight 429g
  • Housing material Nylon, PC

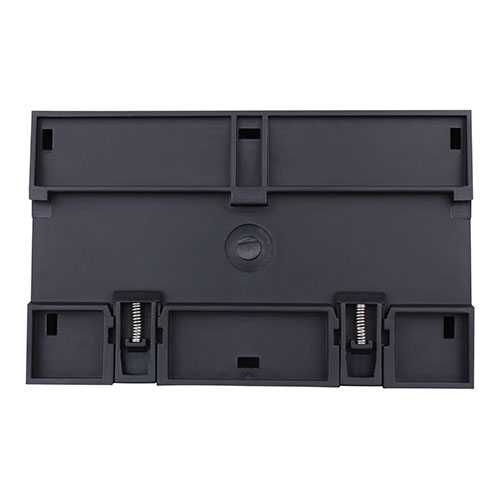

  • Installation 35mm DIN rail installation
  • Protection rating (Compliant with EN 60529) IP20
