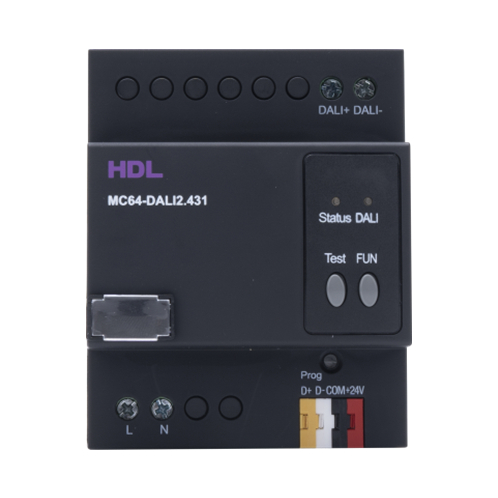

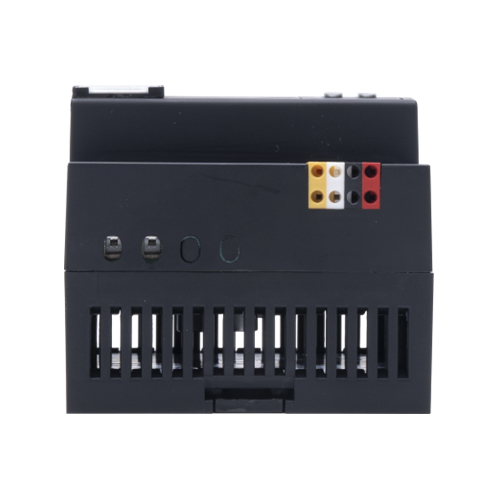

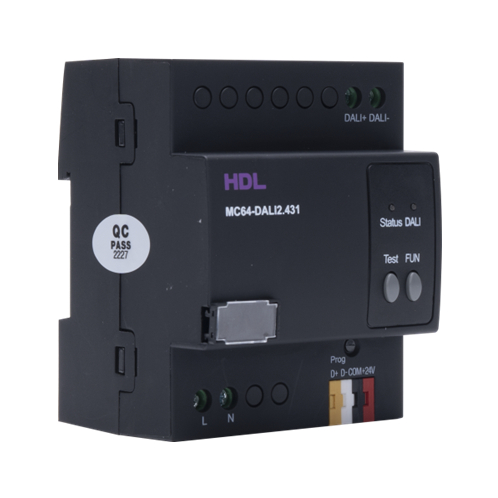

64CH DALI2 Ballast Dimming Actuator

With built-in DALI power supply, DALI-2 gateway supports both HDL Buspro protocol and DALI Buspro. By the debugging software, users can configure DALI-2 gateway, including channel control, zone dimming, scene setting etc. After debugging, through the mobile phone App, users can proceed smart control for the lighting devices.

Categories: ,

Description

Features

  • Up to 64 DALI drivers supported, low limit and high limit settable for each channel
  • Up to 16 separate zones, zone dimming supported
  • 16 scenes for each zone, up to 90.51s running time for each scene
  • Auto status recall for scene settings after reboot
  • Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DT8 type color temperature control ballasts.
  • Short circuit protection for DALI wires
  • Both manual and online update supported

Parameters

  • Basic Parameters
  • Working voltage 15 – 30V DC
  • Working current ≤15mA DC
  • Input voltage 100 – 240V AC (50/60Hz)
  • Total number of drivers supported 64
  • Interface HDL Buspro，DALI
