Description
Features
- LED status indicator and bypass button for each output channel are available.
-
Up to 2 separate zones, and up to 12 scenes can be set for each zone.
-
Up to 6 sequences, and 12 steps for each sequence
-
Low Threshold, High Threshold, Maximum Threshold are all available for each channel.
-
Selected scene or scene before power off can be activated automatically when the device restarts.
-
Trailing edge dimming mode is supported for each channel.
-
Short circuit protection, instant overvoltage protection and overheat protection
-
4 dimming curves
-
Online update via HDL Buspro Setup Tool
Parameters
- Basic Parameters
- Working voltage 15~30V DC
- Working current 40mA/24V DC
- Input voltage 100V/240V AC (50/60Hz)
- Output channel 6CH, 1.5A/CH
- Total output current 9A Max.
- Dimming mode Leading edge, trailing edge
- Dimming curves Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent, custom
- External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
- Specifications
- Dimensions 216mm×90mm×64mm
- Net weight 518g
- Housing material Nylon, PC

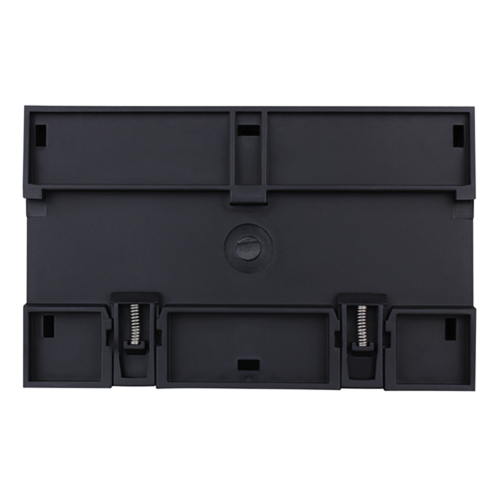

- Installation 35mm DIN rail installation
- Protection rating (Compliant with EN 60529) IP20
