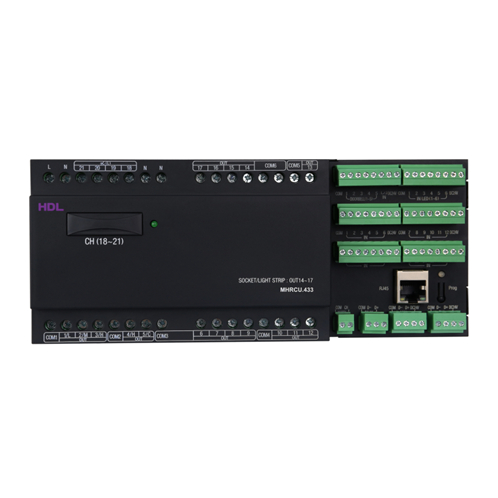

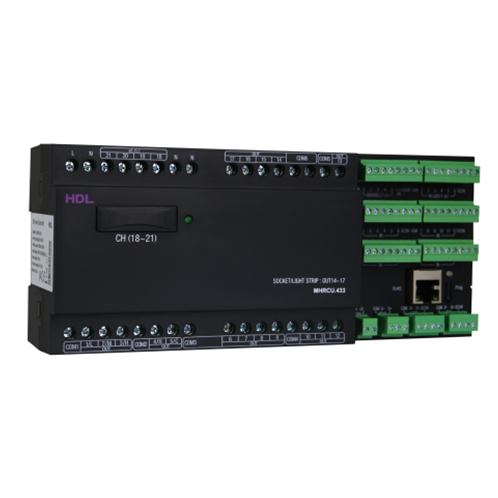

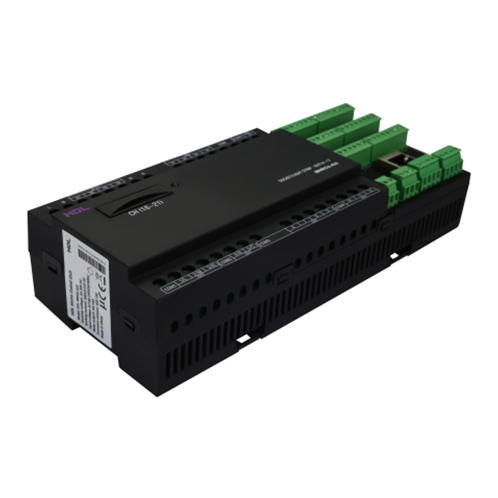

Description
Features
Mix control functions
- 22 zones can be set, and each zone includes 0-12 scenes.
- Channel 1 to 13 are relay outputs, and each channel outputs 5A current. The load types are recommended to be incandescent lamp, halogen lamp, low voltage halogen lamp.
- Channel 14 to 17 are relay outputs, and each channel outputs 10A current. The load types are recommended to be
incandescent lamp, halogen lamp, low voltage halogen lamp.
- Channel 18 to 21 are dimming outputs, each channel outputs 0.8A current. It has short circuit protection with replace
able fuse. When the fuse is burned, the fuse indicator will flash.
- Channel 22 is 1A relay output channel.
Dry contact
- 24-channel dry contact inputs.
LED output function
- 11-channel switch indicator outputs.
RS485 function
- 1CH external RS485 Bus data receiving and sending, internally converted into HDL Buspro protocol commands.
Internet function
- Local connection control or remote connection configuration.

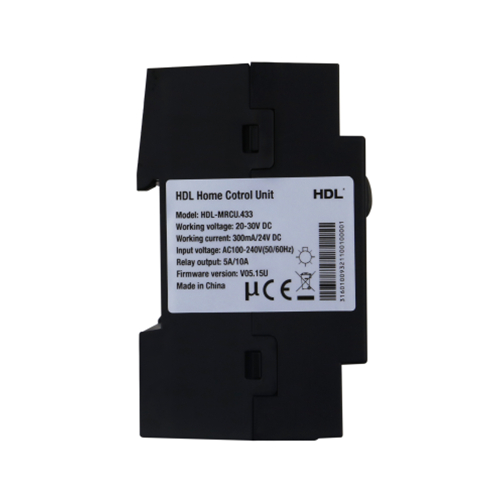

Parameters
- Basic Parameters
- Working voltage ：20~30V DC
- Working current ：300mA/24V DC
- Input voltage ：AC100-240V，50/60Hz
- Communication interface ：HDL Buspro, RJ45
- RJ45 interface ：UDP/IP network interface
- TRIAC ：16A TRIAC, minimum load is 30W
- Cable diameter of Buspro terminal ：0.6-0.8mm
- Relay output ：5A/10A
- External Environment
- Working temperature ：-5℃~45℃
- Working relative humidity ：≤90%
- Storage temperature ：-20℃~60℃
- Storage relative humidity ：≤93%
- Specifications
- Dimensions ：216mm×90mm×56mm
- Net weight ：725g
- Housing material ：Nylon
- Installation：35mm DIN rail installation
- Protection rating (Compliant with EN 60529) ：IP20
