Description
Features
-
With 2-channel 10A magnetic latching relay channel
-

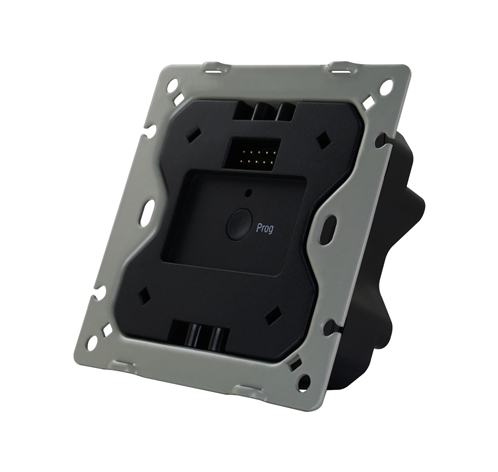

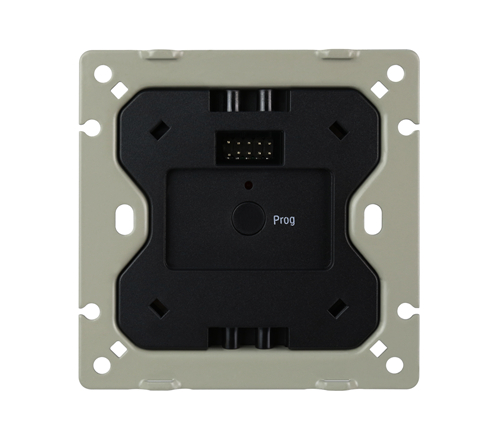

With independent programming button and programming indicator
-
Short press the programming button to realize all relay channels on/off
-
Provide power and communication interface for HDL Tile series panel
Parameters
-
Basic Parameters
-
Working voltage ：15-30V DC
-
Working current ：24mA/24V DC
-
Input voltage：AC100-240V (50/60Hz)
-

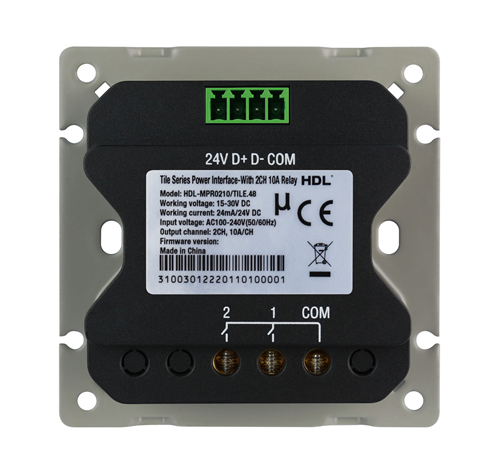

Output channel ：HDL-MPR0210/TILE.48: 2CH, 10A/CH
-
Communication：HDL Buspro
-
Cable diameter of Buspro terminal：0.6-0.8mm
-
- External Environment
- Working temperature ：-5℃~45℃
- Working relative humidity ：≤90%
- Storage temperature ：-20℃~60℃
- Storage relative humidity ：≤93%
- Specifications
- Dimensions：81.4mm×81.4mm×32.4mm
- Net weight：99g
- Housing material：Iron, PC
- Installation：Wall box
- Protection rating (Compliant with EN 60529) ：IP20
