Tlie Display

Description

Features

•  Built-in temperature and humidity sensor, proximity sensor
• Adjustable LCD backlight brightness
• LCD screen wakes up automatically.
• Supports screen lock
• Supports sleep mode, the panel can be set to enter sleep mode if there is no operation for a certain period of time.
• 5 shortcut scene buttons and 1 main menu button available in main interface, both of which support local operation and configuration via HDL Buspro Setup Tool.)

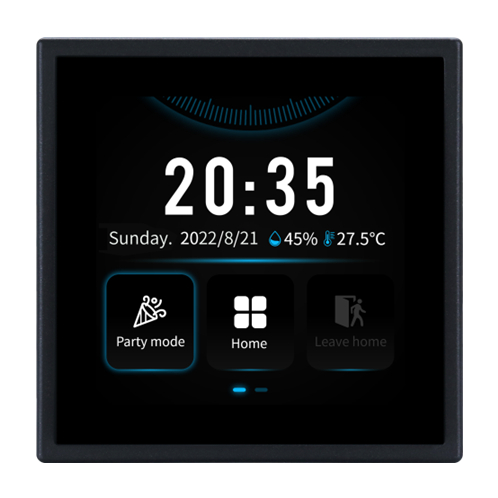

• Time and environment status display and setting

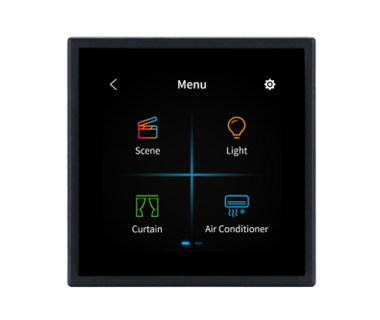

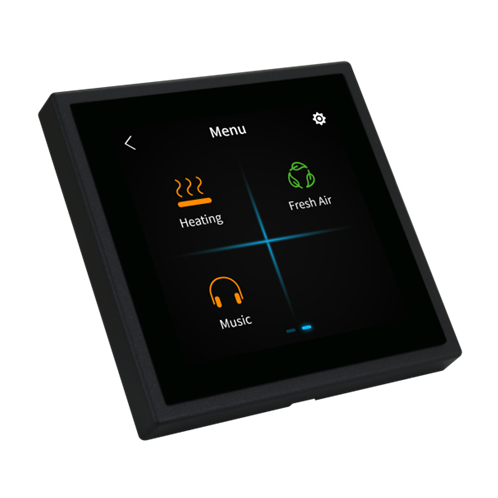

• Dedicated pages for lighting, curtain, scene, air conditioning, floor heating, music and fresh air
• Up to 64 control buttons can be set in lighting page, with the control types of relays, dimmers, and RGB lamp bands and CCT.
• Up to 8 curtain motors supported for curtain control (including motorized curtain, roller blind motor), with the control types of open/close, stop, percentage adjustment
• Scene control: Up to 32 scenes supported
• Air conditioning control: Up to 8 air conditioners supported, with the control types of on/off, temperature adjustment, fan speed adjustment, mode switching
• Floor heating control: Up to 8 floor heating modules supported, with floor heating modes of Normal, Day, Night, Away, Auto and control types of on/off, temperature adjustment, floor cooling and floor heating switch, mode switching
• Music play: Up to 8 music players supported
• Fresh air control: Up to 8 fresh air devices supported with the control types of on/off, fan speed, mode, etc.
• Buspro voltage detection supported
• Online update supported via HDL Buspro Setup Tool

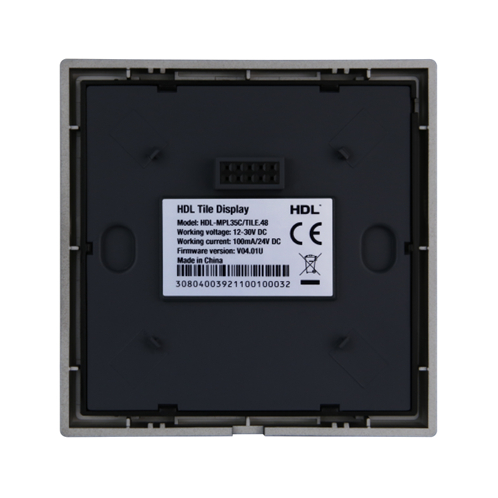

Basic Parameters

• Working voltage  12~30V DC
• Working current 100mA/24V DC
• Communication HDL Buspro
