Description
Parameters
-

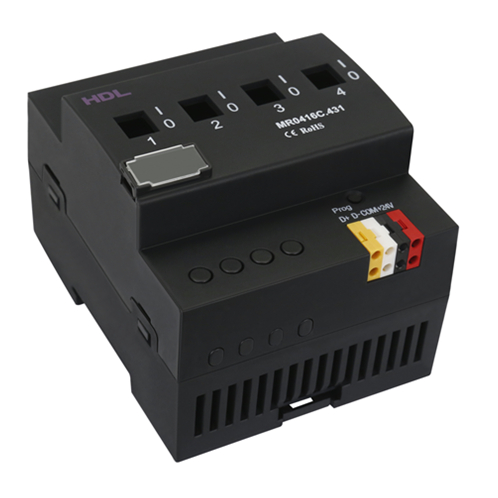

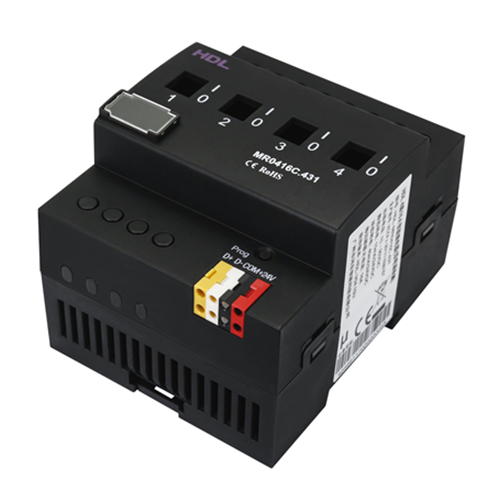

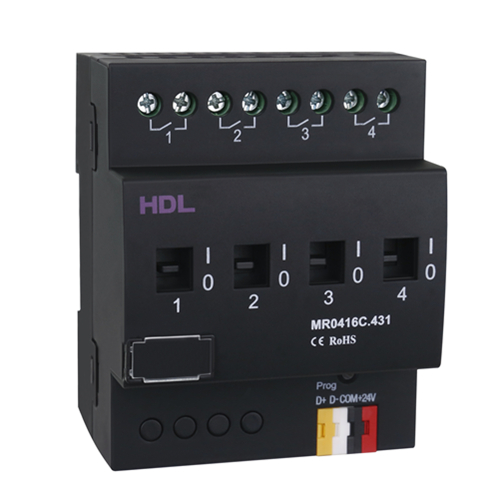

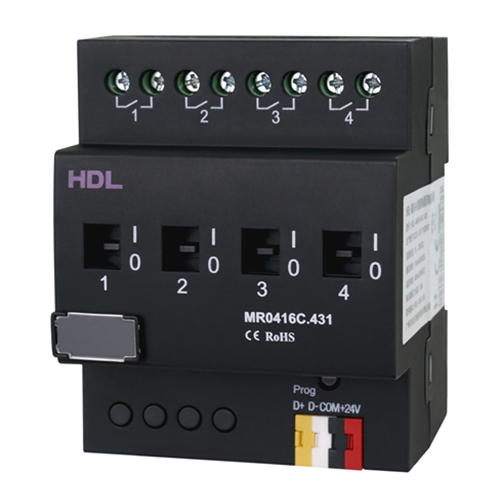

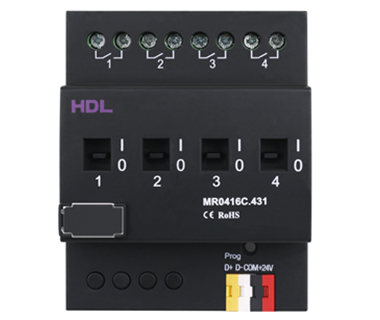

4-channel relay output unit
-
Scene control and sequence control
-
Up to 4 separate zones
-
8 scenes for each zone, scene running time up to 60 minutes
-
2 sequences for each zone, up to 4 steps for each sequence
-
Light protection delay for each channel (0-60 minutes)
-
Mass turn-on delay for each channel(0-25 seconds)
-
Manual switch for each channel
-
Stair lamp function of the channel settable
-
Channel current, used time of load and alarm status of each channel can be detected.
-
Selected scene or scene before power off automatically activated when device restarts
-
Specified scene or no operation for options when power off
-
HDL Buspro communication
-
Supports online upgrade

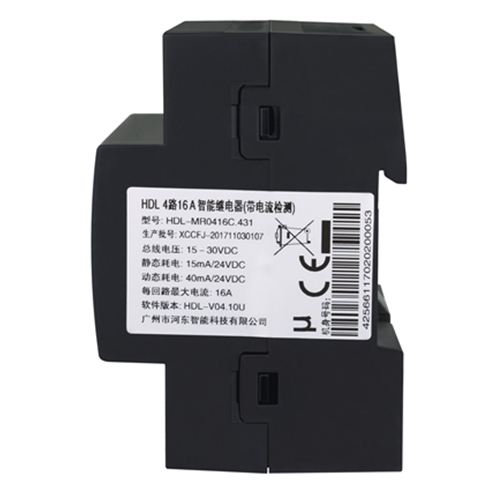

Parameters
- Basic Parameters
- Working voltage: 24~30V DC
- Working current: 35mA/24V DC
- Input voltage:120V/240V AC (50/60Hz)
- Output channel: 4CH/16A
- Relay: 50A Magnetic latching relay
- Maximum current of each channel:16A
- Electronic life time of relay: >60000 (Resistance load)
- Protection: Connect a breaker in each channel
- External Environment
- Working temperature: -5℃~45℃
- Working relative humidity: ≤90%
- Storage temperature: -20℃~60℃
- Storage relative humidity: ≤93%
- Specifications
- Dimensions :72mm×90mm×64mm
- Net weight :248g
- Housing material :Nylon, PC

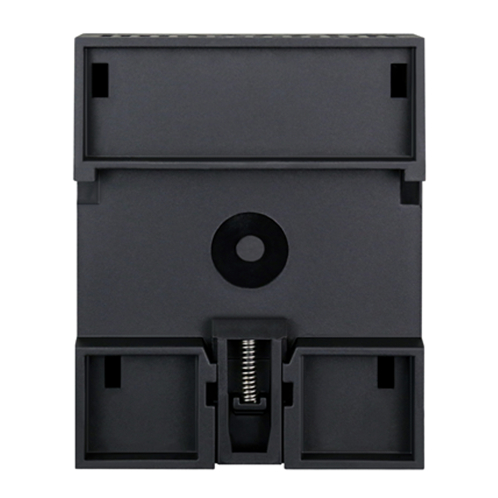

- Installation:35mm DIN rail installation
- Protection rating (Compliant with EN 60529) :IP20
- Recommended Load Types and Power
- 240V, 16A, Resistive, 100,000 cycles, 40°C;
- 240V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
- 240V, 16A, Standard Ballast, 30,000 cycles, 40°C;
- 240V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
- 120V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
- 120V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
- 120V, 16A, Standard Ballast, 30,000 cycles, 40°C;
