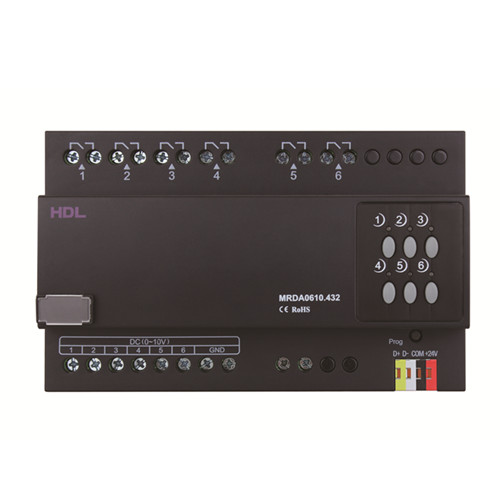

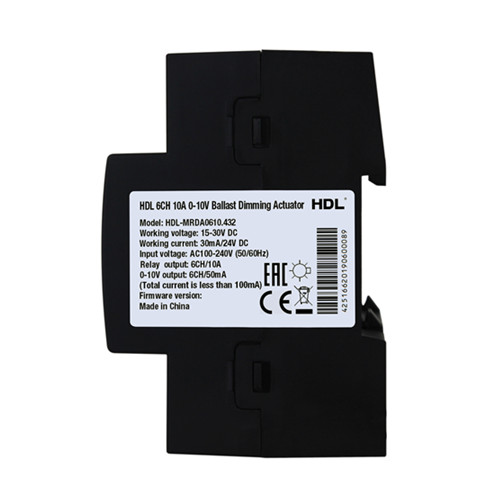

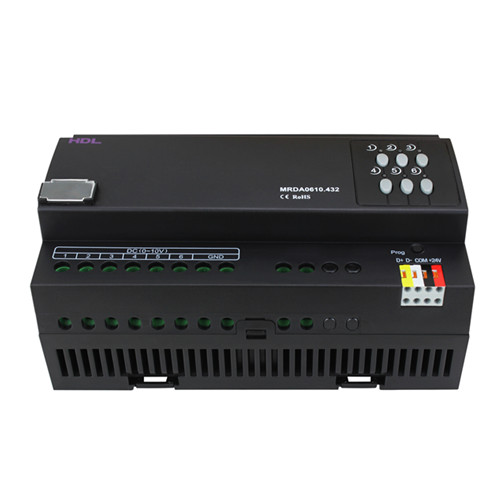

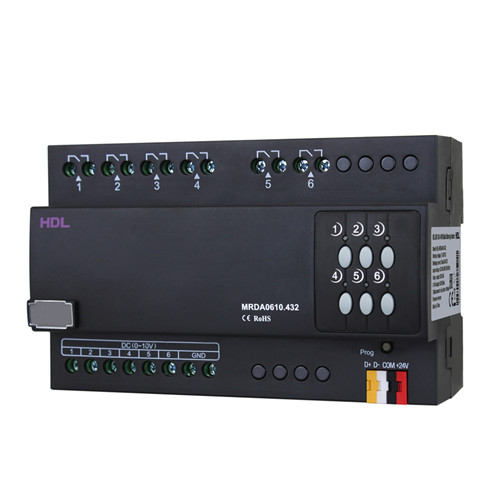

6CH 10A 0-10V Ballast Dimming Actuator

6CH 10A 0-10V Ballast Dimming Actuator is a multifunction control module. It has 6- channel relay outputs and it is applicable for switch control. It has 6–channel for 0-10V analog signal outputs (supports input and output ), which can control the 0-10V dimmable fluorescent tube and 0-10V LED light, etc. The module is to be used in lighting , switch control in the office and building area.

Categories: ,

Description

Features

  • Up to 6 separate zones, up to 12 scenes in each zone
  • Up to 6 sequences, each sequence has 12 steps，running time for each step is 60 minutes, the sequence has 4 running modes: “forward”, “backward”, “forward and backward”, “random”
  • Low, high, max threshold for each channel, applicable for different load
  • Bypass button for manual control is available for each channel
  • Selected scene or scene before power off can be activated automatically when the device restarts
  • Supports HDL Buspro online upgrade.

Parameters

  • Basic Parameters
    • Working voltage 15~30V DC Class 2
    • Working current 30mA/24V DC
    • Input voltage 120V/240V AC (50/60Hz)
    • Relay output 6CH/10A
    • 0-10V output 6CH/50mA (Total current is less than 100mA)
  • External Environment
    • Working temperature -5℃~45℃
    • Working relative humidity ≤90%
    • Storage temperature -20℃~60℃
    • Storage relative humidity ≤93%
  • Specifications
    • Dimensions 144mm×90mm×64mm
    • Net weight 450g
    • Housing material Nylon, PC
    • Installation 35mm DIN rail installation
    • Protection rating (Compliant with EN 60529) IP20
