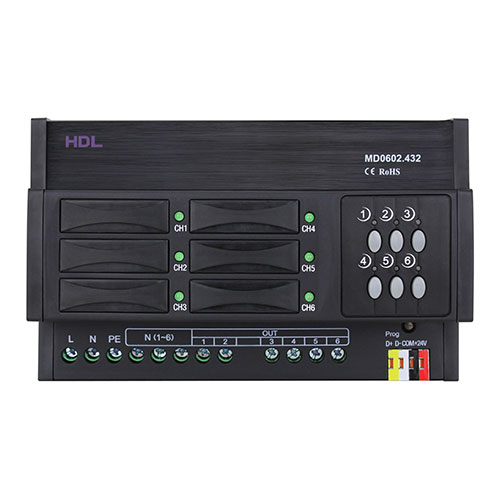

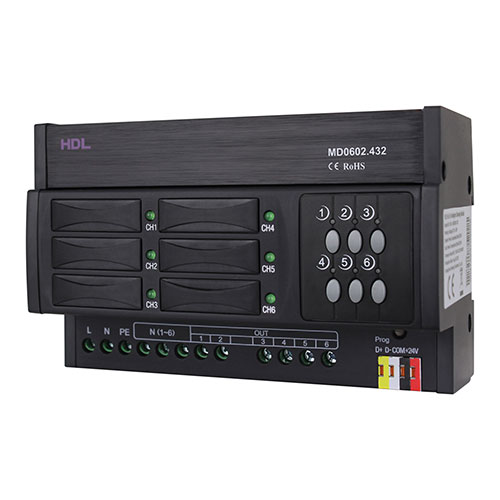

Description
Features
- Up to 6 separate areas; max 12 scenes for each zone
- Up to 6 sequences and each sequence has 12 steps
- 4 dimming curves with 512 dimming accuracy
- Low, high, max threshold for each channel
- Bypass button for manual control available for each channel
- Selected scene or scene before power off can be activated automatically when the device restarts
- Short circuit and over heat protection
- Up to 2A of each channel, 4A fuse of each channel for protection (aR type)
- Supports HDL Buspro online upgrade
Parameters
- Basic Parameters
- Working voltage：15~30V DC
- Working current：28mA/24V DC
- Input voltage：AC100~240V, 50/60Hz
- Output channel：6CH, 2A/CH
- Maximum total output current：10A
- Fuse：4A aR type
- Dimming mode：TRIAC, minimum load 40W
- Dimming curves：Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent
- External Environment
- Working temperature：-5℃~45℃
- Working relative humidity：≤90%
- Storage temperature：-20℃~60℃
- Storage relative humidity：≤93%
- Specifications
- Dimensions：144mm×90mm×64mm
- Net weight：813g
- Housing material：Nylon, PC

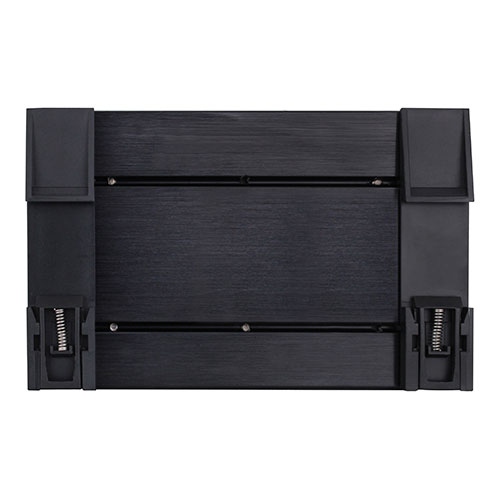

- Installation：35mm DIN rail installation
- Protection rating (Compliant with EN 60529)：IP20
