Description
Features

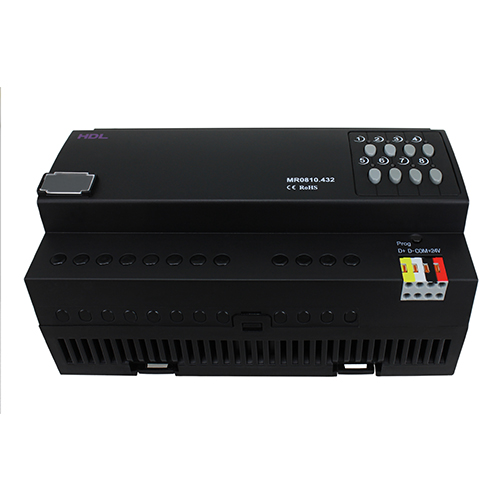

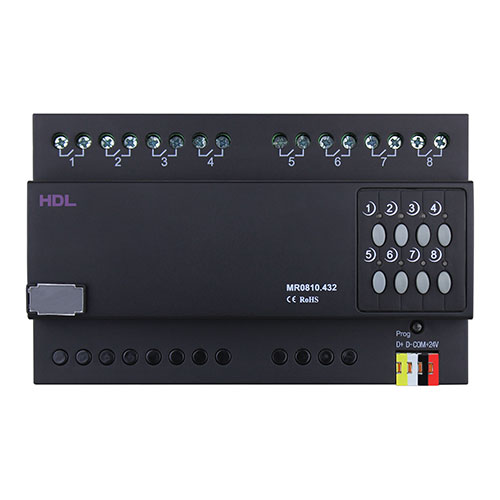

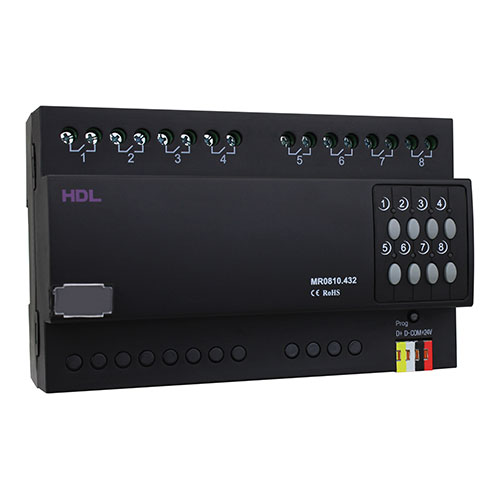

- 8-channel relay output unit
- Scene control and sequence control
- Up to 8 separate zones
- 16 scenes for each zone, scene running time up to 60 minutes
- 2 sequences for each zone, up to 8 steps for each sequence
- Light protection delay for each channel (0-60 minutes)
- Mass turn-on delay for each channel(0-25 seconds)
- Manual switch for each channel
- Selected scene or scene before power off automatically activated when device restarts
- LED indicator: indicates current channel status
- HDL Buspro communication
- Supports online upgrade
Parameters

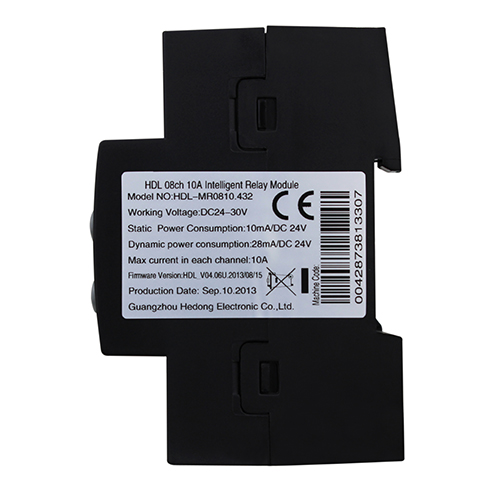

- Basic Parameters
- Working voltage 15~30V DC Class 2
- Working current 40mA/24V DC
- Input voltage 120V/240V AC (50/60Hz)
- Output channel 8CH/10A
- Relay 16A Magnetic latching relay
- Maximum current of each channel 10A
- Electronic life time of relay >60000 (Resistance load)
- Protection Connect a breaker in each channel
- External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
- Specifications
- Dimensions 144mm×90mm×64mm
- Net weight 361g
- Housing material Nylon, PC
- Installation
- 35mm DIN rail installation
- Protection rating (Compliant with EN 60529) IP20
