Description
Features
-

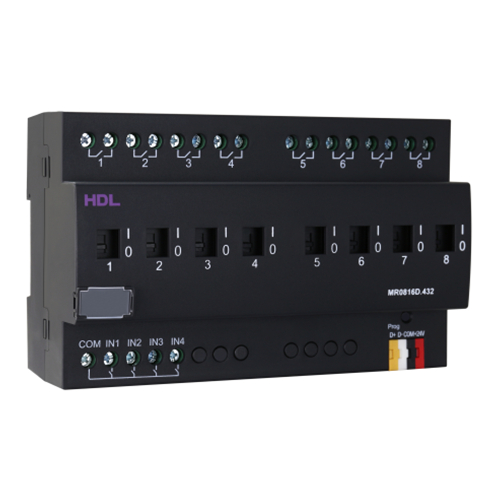

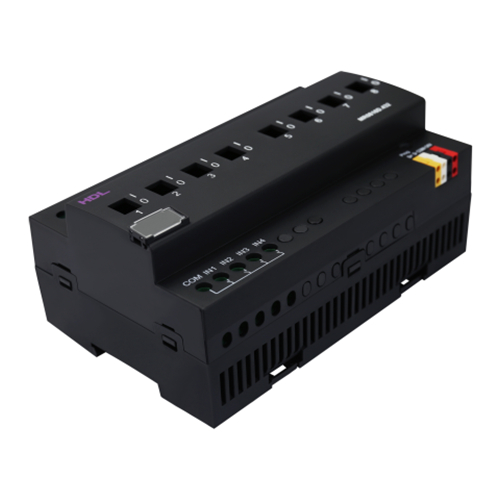

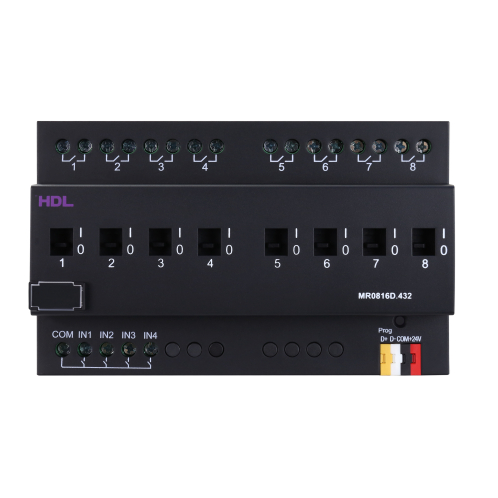

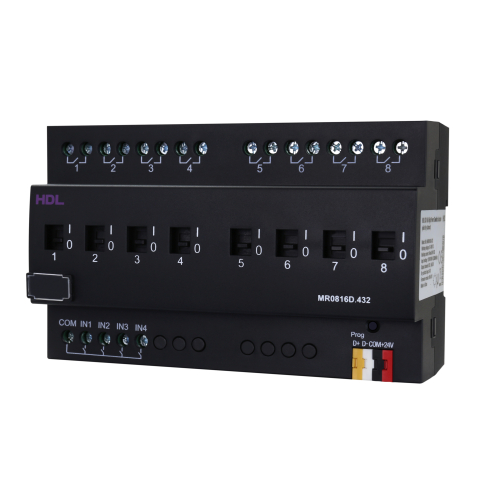

8-channel relay output unit
-
4 dry contact channels
-
Scene control and sequence control
-
Up to 8 separate zones
-
Up to13 scenes for each zone, and 12 of which are available for editing, scene running time up to 60 minutes
-
2 sequences for each zone, up to 12 steps for each sequence
-
Light protection delay for each channel (0-60 minutes)
-
Mass turn-on delay for each channel(0-25 seconds)
-
Manual switch for each channel
-
Stair lamp function of the channel settable
-
Selected scene or scene before power off automatically activated when device restarts
-
HDL Buspro communication
-
Supports online upgrade
Paramters

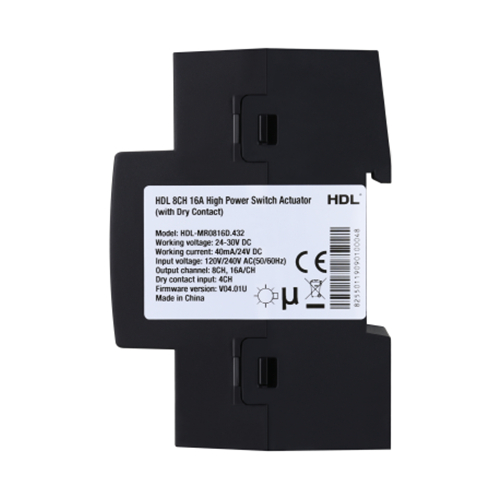

- Basic Parameters
- Working voltage： 24~30V DC
- Working current： 40mA/24V DC
- Input voltage： 120V/240V AC (50/60Hz)
- Output channel：HDL-MR0816D.432: 8CH, 16A/CH
- Dry contact input：HDL-MR0816D.432: 4CH
- Relay ：50A Magnetic latching relay
- Maximum current output of each channel ：16A
- Electronic life time of relay ：>60000 (Resistive load)
- Protection ：Connect a breaker to each channel
- External Environment
- Working temperature： -5℃~45℃
- Working relative humidity： ≤90%
- Storage temperature： -20℃~60℃
- Storage relative humidity： ≤93%
- Specifications
- Dimensions：HDL-MR0816D.432: 144mm×90mm×64mm
- Net weight：HDL-MR0816D.432: 487g
- Housing material ：Nylon, PC
- Installation：35mm DIN rail installation
- Protection rating (Compliant with EN 60529) ：IP20
