LCD Touch Thermostat

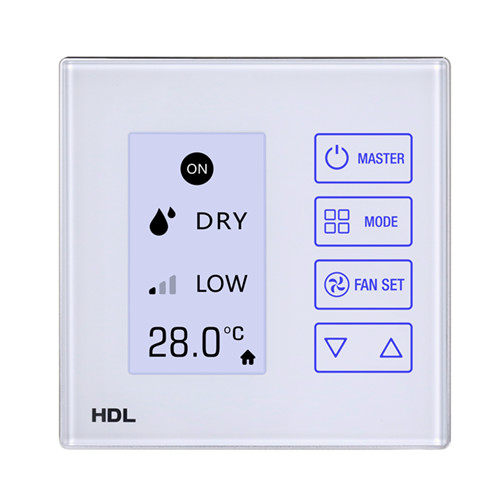

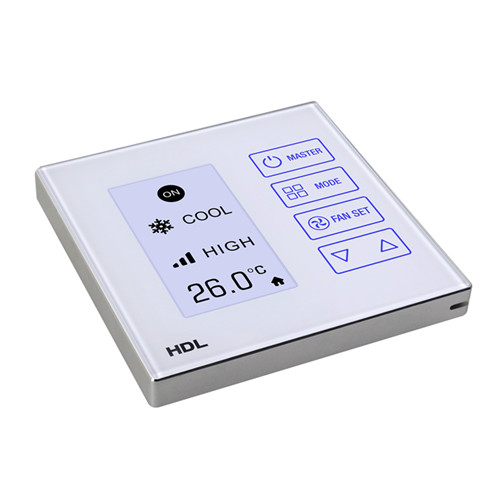

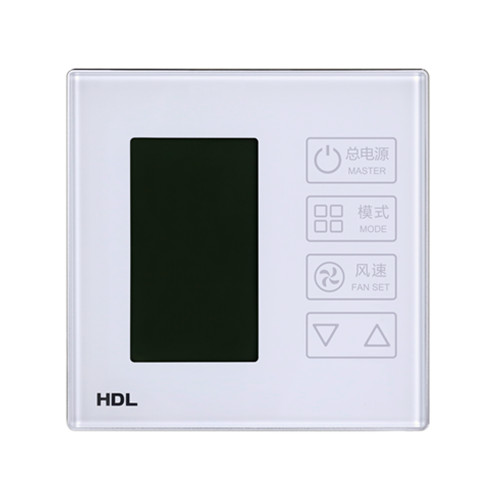

LCD Touch Thermostat is designed to control air conditioners. Displaying the current indoor temperature and air conditioning status via LCD screen, the panel can detect the indoor temperature at any time and compare with the set temperature, and automatically adjust the air conditioning status. Figure 1 shows the representative picture of this model. Compared with other similar panels, this panel has the same function, except different key styles.

Categories: ,

Description

Features

  • Controls air conditioner ’s temperature, mode, fan speed and power.
  • Supports setting of external IR function, backlight brightness, and power saving mode.
  • Supports cooling, heating, dehumidification and fan speeds.
  • Supports high, medium, low, auto fan speeds.
  • Supports temperature and status display of air conditioner.
  • Supports online update via HDL Buspro Setup Tool.

Parameters

  • Basic Parameters
    • Working voltage 12~30V DC
    • Working current 40mA / 24V DC
    • Communication HDL Buspro
  • Temperature setting range 0~30℃
    • External Environment
    • Working temperature -5℃~45℃
    • Working relative humidity ≤90%
    • Storage temperature -20℃~60℃
    • Storage relative humidity ≤93%
  • Specifications

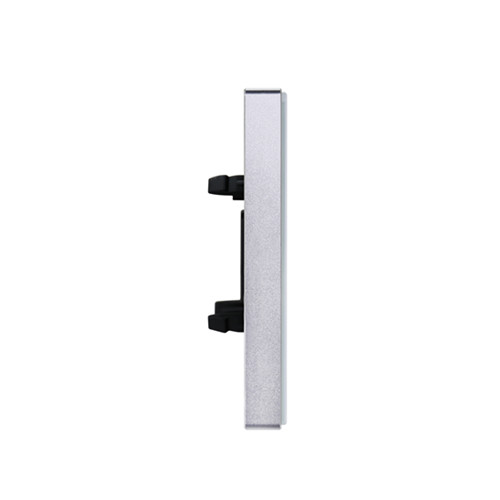

    • Dimensions 86×86×10.5(mm)
    • Net weight 120g
    • Housing material Glass, ABS, Aluminum

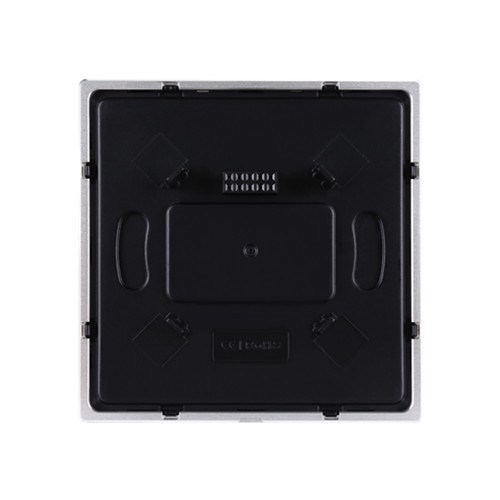

    • Installation Wall box
    • Protection rating (Compliant with EN 60529) IP20
