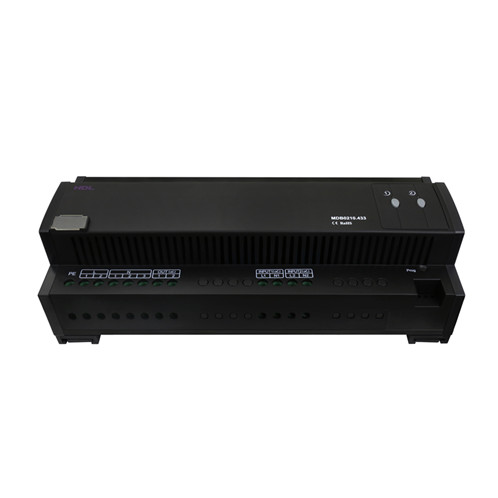

MOSFET Power Amplifier

Description

Features

• Mosfet dimming mode
• It must work in conjunction with dimmer
• Each output channel has LED status indicator and manual control switch
• It has short circuit protection and over heat protection
• When the temperature of the aluminum alloy radiator on the mosfet power amplifier reaches 80℃, the output power starts to decrease; when it reaches 85℃, stop to output power; when it goes down to 80℃, the output power starts to work again
• Two output channels can be combined into one channel, the output current increase to 16A (The input is the first channel)

Parameters

• Electrical Parameters:
  • AC power input AC110/230V
  • Output channel 2CH,10A/CH
  • Maximum output channel
  • current in total
  • 16A
• Dimming mode Trailing edge
  • Environmental Conditions:
  • Working temperature -20℃~45℃
  • Working relative humidity Up to 90%
  • Storage temperature -20℃~+60℃
  • Storage relative humidity Up to 93%

• Approved
• CE
• RoHS
• Product Information:
  • Dimensions 216×90×66 (mm)
  • Weight 540.5(g)
  • Housing material Nylon, PC, Aluminum alloy
  • Installation 35mm Din Rail installation
  • Protection degree IP20
