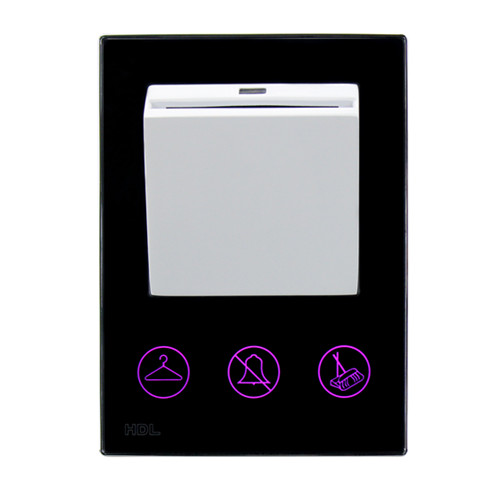

RF Card Reader & Master Control US with 3 Service

Description

Features

• Master card for energy & power management.
• 3 touch buttons, sensitivity can be adjusted
• Button color RGB can be adjusted
• The touch button can be used as the panel button, or work with HDL touch door bell panel, can be displayed DND, Clean, Wait.
• Control of mechanical switch can be configured when inserting or taking off the card. Up to 49 targets can be controlled by the switch. Maximum 99 targets can be controlled by other button modes
• Support online update via HDL Buspro Setup Tool

Parameters

• Basic Parameters
  • Working voltage 12~30V DC
  • Working current 60mA/24V DC
  • Supported card type MIFARE ONE S50 13.56MHz
  • Communication HDL Buspro
• External Environment
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%
• Specifications
  • Dimensions
  • 86×86×20.4 (mm) (EU)
  • Net weight
  • EU: 107g
  • US: 330g
  • Housing material Glass, ABS
  • Installation Wall box
  • Protection rating (Compliant with EN 60529) IP20
