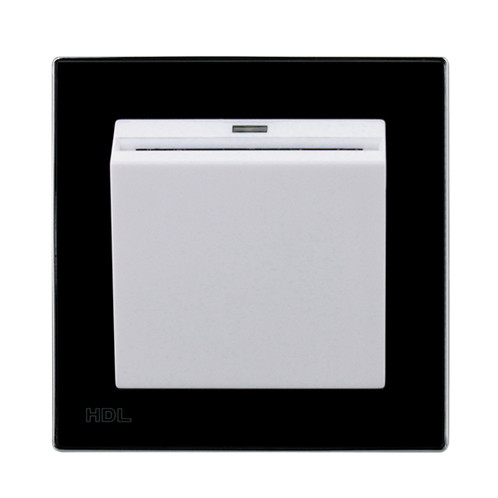

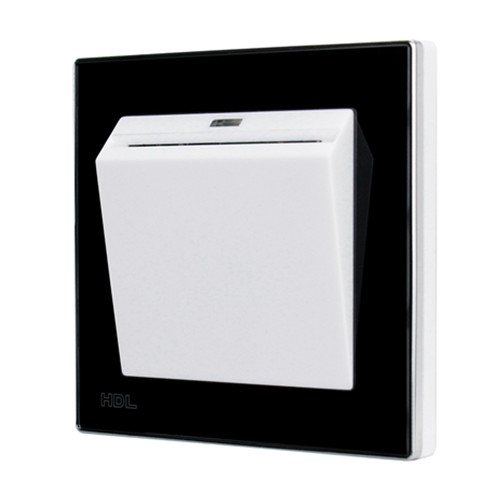

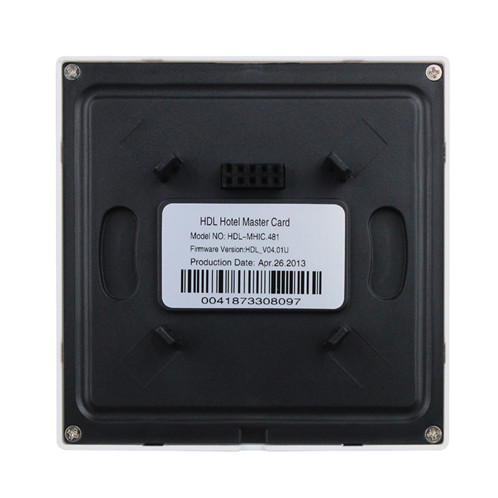

RF Card Reader & Master Control

Description

Features

• Supports master card energy gaining & power management.
• Supports ID recognition, scene control in accordance with various types of card.
• Supported card types: Guest card, waiter card, cleaner card, mender card and administrator card.
• The device can be set as mechanical switch when a card is inserted or taken off. Up to 49 targets can be set to be controlled by the switch. Up to 99 targets can be set to be controlled by the switch in other key modes.
• Online upgrading via HDL Buspro.

Parameters

• Basic Parameters
  • Working voltage 12~30V DC
  • Working current 24mA/24V DC
  • Supported card type MIFARE ONE S50 13.56MHz
  • Communication HDL Buspro

•  External Environment
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%

•  Specifications
  • Dimensions 86×86×20.5 (mm)
  • Net weight
  • MHIC.48(Glass): 107(g)
  • MHIC.48(Aluminum): 68(g)
  • Housing material
  • MHIC.48(Glass): Glass, ABS
  • MHIC.48 (Aluminum): Aluminum, ABS
  • Installation Wall box
  • Protection rating (Compliant with EN 60529) IP20
