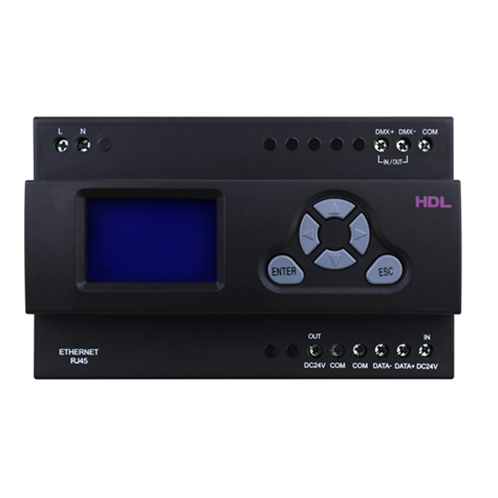

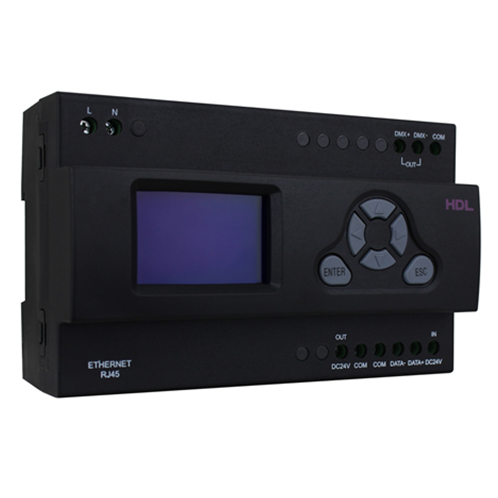

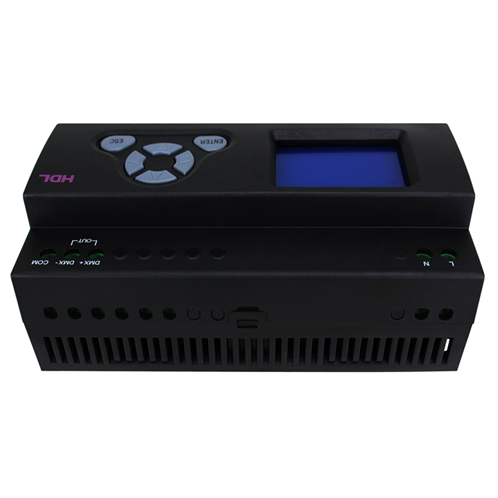

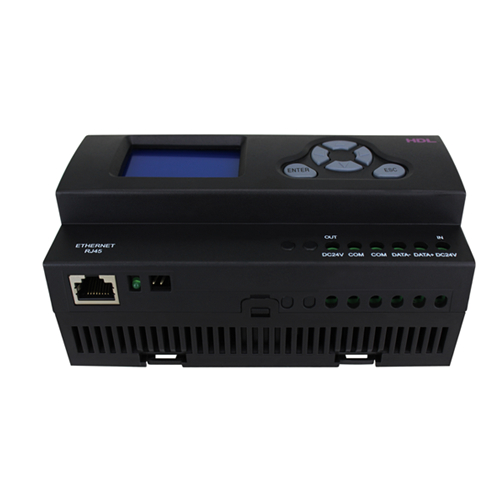

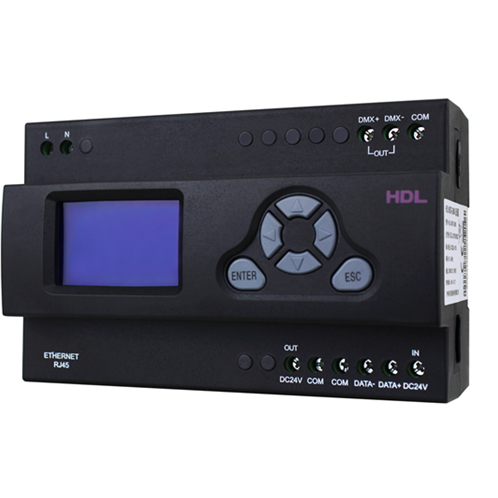

DMX Recorder

Description

Features

• PC remote operation, download program, play program, delete program
• Communication interface: HDL Buspro, RJ45
• Auto operate, auto record, auto play, auto delete, auto play. They have two modes: single or loop play.
• Panel for playing
• Master/slave recorder function
• Supports online upgrades
• Others: NET-DMX, DMX512, password protection, IP setting, storage view can be selected for DMX outputs.

Parameters

• Basic Parameters
  • Working voltage： 12~30V DC
  • Working current： 200mA/24V DC
  • Input voltage： AC100-240V (50/60Hz)
  • Communication： HDL Buspro
  • Signal type ：DMX512 (Version 1990)
  • Total capacity： 256Mbytes
  • HMI： 128×64 raster graphic LCD, 6 soft-touch buttons
  • Record time (up to capacity)： 10400s, about 2hours and 50mins
  • Program number： Max.50
• External Environment
  • Working temperature ：-5℃~45℃
  • Working relative humidity ：≤90%
  • Storage temperature ：-20℃~60℃
  • Storage relative humidity ：≤93%
• Specifications
  • Dimensions： 144mm×90mm×64mm
  • Net weight ：433g
  • Housing material ：Nylon, PC
  • Installation ：35mm DIN rail installation
  • Protection rating (Compliant with EN60529) ：IP20
